Pro Convert for NDI to HDMI 4K 影音網路 NDI 連結轉換器
Magewell 相關連結 : Pro Convert | Ultra Stream | USB Capture | USB Capture Plus | ECO Capture | Pro Capture | 應用程式

Pro Convert for NDI to HDMI 4K 影音網路 NDI 連結轉換器

Pro Convert for NDI to HDMI 4K 影音網路 4K NDI 連結轉換器,獨立標準的 4K60 IP 視訊解碼器,支持多傳輸協定

重點功能

● 將包含 NDI 在內的 IP 視訊解碼轉換成 4K HDMI 信號

美樂威 Magewell Pro Convert 系列
Magewell Pro Convert HDMI 4K PLUS 網路 NDI 連結轉換器
Magewell Pro Convert HDMI PLUS 網路 NDI 連結轉換器
Magewell Pro Convert HDMI TX 網路 NDI 連結轉換器
Magewell Pro Convert SDI 4K PLUS 網路 NDI 連結轉換器
Magewell Pro Convert SDI PLUS 網路 NDI 連結轉換器
Magewell Pro Convert SDI TX 網路 NDI 連結轉換器
Magewell Pro Convert AIO 網路 NDI 連結轉換器
Magewell Pro Convert for NDI to HDMI 4K 網路 NDI 連結轉換器
Magewell Pro Convert for NDI to HDMI 網路 NDI 連結轉換器



詳細規格

Model Pro Convert for NDI to HDMI 4K
Supported Web Browser (tested) Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

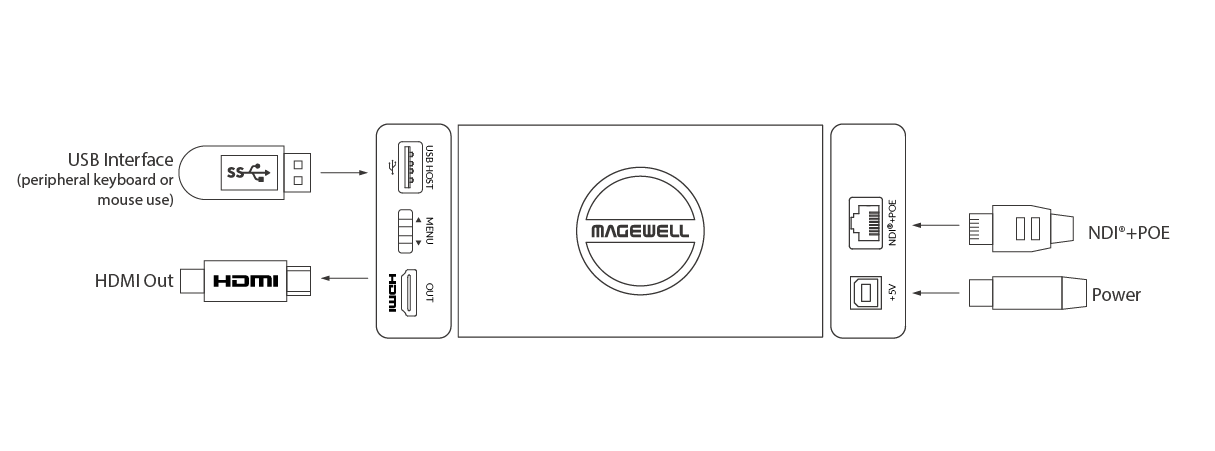

Outputput Interfaces HDMI
- HDMI 1.4
- HDMI 2.0
Storage Interface SD Card (functions to be developed)
Screw Mounting Hole ¼–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB 2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
USB 3.0 Type A
- Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings
Control Buttons MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options
HDMI Output Features Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions
Support for 96KHz 16bits 8-channel audio streams
Support for delivering videos at the preferred video format according to the EDID of the connected monitor
Stream Decoding Features Support for decoding streams of NDI, RTSP, HTTP, RTMP Pull/Push and TS over UDP/SRT/RTP
Support for decoding videos in H.264 and H.265 format
Support for decoding up to 4K 60fps signal
Support for modifying configurations using the Web UI or the Options menu
Setting Video OSD composition, including
- Source name & resolution
- Tally indicators
- Audio meter
- Audio meter scale
- Center cross
- Safe area
Video scaling, frame rate and aspect ratio conversion
Video color format conversion
- Auto or manual selection of input color format
- Support for YUV BT.601, YUV BT.709 color formats
Video vertical and mirror flip
Remote controlling the PTZ device connected to the video source
Setting audio gain, sample rate and channels
Support for decoding sources in different network segment but can be able to pinged
Support for decoding alpha channel, options are
- Alpha only
- Alpha blend with white
- Alpha blend with black
- Alpha blend with checkboard
NDevice Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting board-index, from 0 to F, through the on-board rotary switch
Firmware Upgrade Support for manual update using Web UI
LED Indicator Power LED status indicator
- On: power connected
- Off: power unconnected
Decode LED status indicator
- On: decoding in progress
- Blinks: decoding error
- Off: source unselected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
L-bracket
Power Consumption 5V max current: ~1.6A / Max power consumption: ~7.2W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing





以上資料僅供參考,實際規格請以原廠產品公佈資訊為標準,如有更新,不另行通知
