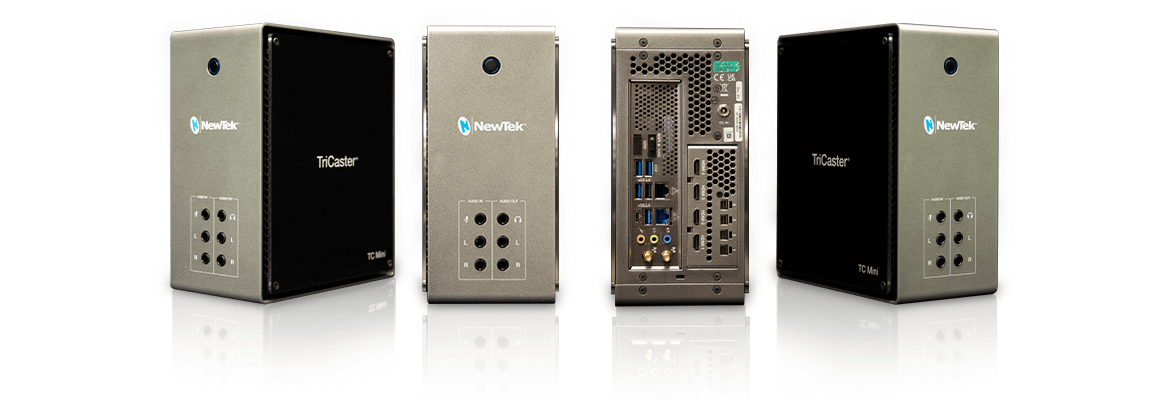

TriCaster Mini X 全媒體多M/E製作導播系統

產品規格

Network Video Input 8 x IP video inputs via NDI, resolution-independent
Digital Video Inputt 4 x HDMI video connections supporting video input in any combination of standard formats, resolutions, and frame rates1
  • 2160p 29.97, 25
  • 1080p: 59.94, 50, 29.97, 25
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25
  • SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX Skype TX Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output IP video output via NDI, optionally configurable for:
  • 4 x independent video mix outputs
  • 1 x 4K UHD video mix output
Stream Output 2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs 4 x mini display port with output adapters
3 x of the outputs support multiviewers using standard display resolutions
Mix/Effect Buses (M/E)
  • 4 x M/E buses supporting video re-entry
  • 1 x Mix/Effect channel per bus with support for up to 2 sources
  • 2 x KEY layers per bus
DSK Channels 2 x DSK channels
Media

5 x media players

  • 2 x DDR
  • 2 x GFX
  • 1 x Sound

15 x media buffers

  • 5 x animation buffers
  • 10 x graphic buffers
Keyers Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
  • 8 x input keyers
  • 2 x media player keyers
  • 4 x M/E keyers
  • 15 x buffer keyers
Virtual Sets Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Recording 4 x recording channels from either NDI inputs or Mix outputs (10 x with Premium Access)
  • Records and retains alpha channel data
  • 4 x QuickTime archival video recorders (Native NDI Codec for recording)2
2QuickTime Player not required for playback in common NLE applications
Storage Capacity varies by format, resolution and file specification
Supports recording to external storage via USB 3.0
Grab Grab full-resolution, deinterlaced still images from external video sources and outputs
Export Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixer Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Local Audio Input 1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output 2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio
  • Native support for network audio input and output via NDI
  • Embedded audio supported for all NDI input and output video signals
  • Integrated support3 for Dante networking protocol from Audinate

3Requires Dante Virtual Soundcard license from Audinate (sold separately)
5Requires third-party virtual sound card license (sold separately)

Supported Media File Formats

Import, store, and play back multimedia files, with optional transcoding, including:

  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
Processing Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency ~1.0-1.5 frames
Tally Support for network tally via NDI
MIDI Support for standard MIDI protocol enabling third-party device control
NIC 2 x 1 Gigabit NIC
System Physical

NewTek Mini X system chassis, including adjustable handle and cable retention bracket

  • 4.23 x 9.08 x 7.89 in (10.74 x 23.1 x 20.1 cm)
  • 8.4 lbs (3.8 kg)



關鍵字 : #直錄播.#智慧直錄播.#直錄播系統.#攝錄播系統.#攝錄製系統

*本產品將持續創新,規格可能會有變動,當產品設計/規格變動,恕不另行通知。
