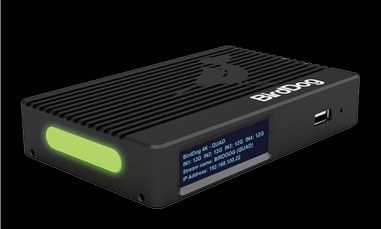

BirdDog 4K Family 影音網路 NDI 連結轉換器
BirdDog 4K Family 影音網路 NDI 連結轉換器
BirdDog 4K Family 影音網路 4K NDI 連結轉換器，具有 4K UHD 60P 轉換能力，配載 12G SDI 或 HDMI 2.0 雙輸入/輸出，支援雙向轉換 ，SFP+ 10G 網路端子，聲音對講系統，NDI Tally，PoE 網路供電與 BirdDog 兼容的 App 工具軟體 。
性能優勢
BirdDog 4K Family 影音網路 4K NDI 連結轉換器 , 提供 4K HDMI 2.0 /12G SDI/QUAD 機型
● 新一級別的 4K NDI 先進應用
● 支援 NDI Tally 系統
● 適用 BirdDog Central NDI App 工具軟體，方便管理製作
● 支援 NDI , NDI|HX IP PTZ 控制
● 提供 12G SDI 或 HDMI 2.0 機型
● 搭載 10GbE SFP+ 網路介面
| 產品規格 | BirdDog 4K Family | ||
| Model 機型 | 4K HDMI | 4K 12G-SDI | 4K QUAD |
| VIDEO FORMAT 視訊格式 | |||
| UHD 3840x2160 | 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 | ||
| HD 1920x1080p | 23.98, 25.00, 29.97, 30.00, 50.00, 59.94, 60.00 | ||
| HD 1920x1080i | 50.00i, 59.94i | ||
| HD 1280x720p | 50.00p, 59.94p, 60.00p | ||
| VIDEO I/O CONNECTIVITY 輸入/出端子 | |||
| HDMI 2.0 Input | ● | - | - |
| HDMI 2.0 Output | ● | ● | ● |
| 12G SDI Input | - | ● | - |
| 12G SDI Output | ● | ● | - |
| 12G SDI Selectable Input/Output | - | - | 4 |
| AUDIO INPUT 音訊輸入 | |||
| HDMI | 2Ch, 48kHz | - | - |
| SDI | - | 2Ch, 48kHz | 2Ch, 48kHz |
| 3.5mm AUDIO | Microphone/line input | ||
| AUDIO OUTPUT 音訊輸出 | |||
| HDMI | 2Ch, 48kHz | ||
| SDI | 2Ch, 48kHz | ||
| 3.5mm AUDIO | Microphone/line Onput | ||
| VIDEO PROCESSING 視訊處理 | |||
| Downconvert NDI output | 4K -> 1080p, 1080p -> 720p | ||
| VIDEO CODEC SUPPORT 編碼支援格式 | |||
| NDI (Full bandwidth i-frame compression) | ● | ● | ● |
| DISPLAY 顯示 | |||
| Integrated 4-line OLED Status Display | ● | ● | ● |
| Integrated Multiviewer | - | - | HDMI OUT |
| TALLY 訊號 | |||
| Onboard Bi-color Tally indicator | ● | ● | ● |
| Selectable Tally indicator on video loop outputs | ● | ● | ● |
| NETWORK CONNECTIVITY | |||
| Ethernet RJ45 1000baseT w/integrated PoE (Power over Ethernet) | ● | ● | ● |
| Open SFP+ Cage (10gb SFP+ Adapters sold separately) | ● | ● | ● |
| Embedded Web configuration Panel | ● | ● | ● |
| WEIGHTS & DIMENSIONS 重量尺寸 | |||
| Size | 135x85x25mm | ||
| Weight | 260g | 260g | 260g |
| POWER | |||
| DC Input | DC 12v / 16w | ||
| PoE (Power over Ethernet) | PoE+ 802.3at | ||
| EXTERNAL INTERFACE SUPPORT (Requires Optional Cables) | |||
| USB to RJ45 for additional network in device support | ● | ● | ● |
| USB to RJ45 for VISCA over IP PTZ control | ● | ● | ● |
| USB to Serial PTZ control (RS232) | ● | ● | ● |
| USB ISO recording | ● | ● | ● |
以上資料僅供參考，實際規格請以原廠產品公佈資訊為標準，如有更新，不另行通知
