Matrox Monarch HDX

---

Dual-Channel H.264 Encoder for Broadcast Streaming and Recording
The Matrox Monarch HDX is a simple and versatile video encoding appliance specifically designed for broadcasters and webcasters who need a flexible solution that is powerful enough to take on today’s demanding video delivery workflows. Monarch HDX offers 3G-SDI and HDMI inputs with frame-synchronization to correct any discontinuity at the input, and two independent H.264 encoders that can be assigned to individual tasks. By providing two encoders in a single device, Monarch HDX can tackle any job; from streaming to two different locations, to recording a proxy quality file while simultaneously recording master quality version for post-event editing, to using one encoder for streaming while the other records at higher quality for VOD downloads. Whether used as a live streaming encoder or video recorder, the Monarch HDX can integrate seamlessly into virtually any SD and HD installation.





Powerful, High Quality H.264 Encoding Engine
The Monarch HDX can share 30 Mb/s of encoding capacity across the two channels. Each channel benefits from a powerful scaling, de-interlacing, and noise reduction engine to ensure only pristine images are sent to be encoded.













Dual-Channel Streaming
When used as a webcasting encoder, the Monarch HDX generates an H.264-encoded stream compliant with RTSP or RTMP protocols. You can assign each channel separately to deliver what you need, where you need. Each channel can stream up to 10Mb/s, allowing you to simultaneously stream to two destinations or set the device for up to 20Mb/s streaming quality for a single encoding destination.



Dual-Channel Recording
Monarch HDX provides a huge amount of flexibility as an H.264 video recorder. Content can be captured in either MOV or MP4 files to ensure that they can be played by your application of choice. Recordings can be stored locally on an SD card, a USB drive, or remotely on a network-mapped drive. Dual channel recording allows the user to simultaneously record content locally and to a drive, which means files are immediately available to anybody on the network, but also provides the assurance that no action is lost even if the network goes down. Furthermore, each recording can be done at a different bitrate should there be a need to deliver the content to devices with varying decode capacities.



Simultaneous Streaming and Recording
The quality of your VOD downloads need never be dictated by the available upload bandwidth. Monarch HDX dual encoders can broadcast a live webstream at one bitrate while simultaneously recording mastering quality H.264 files for immediate availability, such as post event VOD or editing with your NLE of choice.



Selectable HDMI and SDI Inputs and Simultaneous Outputs
Monarch HDX H.264 video recorder can accept signals from HDMI or SDI sources. The input is selected using the web based UI, Matrox Command Center, or directly on the unit itself, allowing for a wide range of connectivity to devices such as cameras, switchers or routers. Additionally, both inputs are complemented by internal frame synchronizers to ensure uninterrupted streaming and recording operations, regardless of the disturbance on the input. The audio is also selectable between the two channels of the embedded video signal or the analog stereo input. Audio may be dynamically muted/unmuted without affecting the video encoding operation.
Regardless of input selection, SDI, HDMI video and embedded and analog audio outputs are live. For SDI workflows, the Monarch HDX recorder has an extremely low pass-through latency with a built-in power-loss relay which, in case of power loss, will route the SDI input directly to the SDI output, ensuring signal path integrity and fail safe design options.







Easily Webcast to Your Audience
Whether you’re providing live streaming content to Adobe Flash or Wowza Media servers, to any of the popular CDNs, or directly to a computer, Matrox Monarch HDX’s flexible video streaming protocol support is up to the task. The Monarch HDX is a certified “Works with Wowza” live video streaming encoder, allowing our users to benefit from enhanced integration with the Wowza streaming engine. As a certified encoder, Wowza Manager can provide an XML file which contains the credentials required for Monarch HDX to easily connect to the Wowza Streaming engine. The Monarch HDX also supports XML files generated for use with Flash Live Media Encoder. These files are often offered by CDNs to allow their customers to easily connect to their service. Both XML files are loaded into the Monarch HDX using the Matrox Command Center, a web based UI.







Control from Anywhere

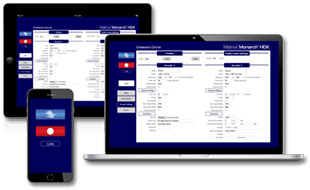

Matrox Monarch HDX can be controlled and configured via the Monarch HDX Command Center using any device on the network that supports a standard web browsing application such as a computer, smart phone or tablet. Designed for operator ease-of-use, master controls provide one-click operation to start streaming, recording or both from anywhere within the user interface.
The device also provides convenient controls directly on the unit itself to stop/start recording or streaming, and an additional button to assign the input.





H.264 Preview Stream

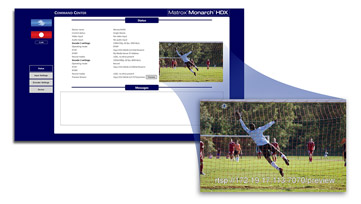

Monarch HDX H.264 encoder provides a very useful low bitrate preview stream of the input directly in the Command Center UI. This same preview can be viewed using software players such as VLC or on third-party devices, such as Crestron control panels. This stream is available independently of the two encoder channels allowing you to check your video signal before your webcast goes live.



Profiles and Presets
Monarch HDX ships with a number of typical streaming and recording presets that define all the encoding parameters including resolution and bitrate. Whether preset or custom parameters are used, they only need to be entered once and saved as a unique profile. A profile not only contains encoding parameters but also destination information detailing where the encoded video is being sent. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to re-enter data.





Robust and Practical Design
Powerful and robust, Monarch HDX offers simple, one touch stream and record push buttons, input selection, and a locking power connector. Monarch HDX's HDMI or SDI outputs makes it easy to monitor what you are streaming and recording, regardless of signal source. All eight channels of embedded audio can be passed from any input to any output. When embedded audio is selected, all eighth channels are passed from input to output. When Analog audio is selected, it is both looped out as well as embedded in video outputs. Its design allows Monarch HDX to be just as easily located on a desktop as in a rack—up to two units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back. Finally, the Monarch HDX also features a wide input voltage range of 9 to 24 volts. It can be powered using the Matrox supplied power supply or DC sources such as standard field batteries.







Matrox Utils Application
The Matrox Utils application allows operators to remotely scan and find all Monarch HDX’s present on their network. The Utils application will also scan the attached Monarch HDX and notify the operator if the unit is up to date with its installed firmware version and will also update the device automatically to ensure that it has the latest software release installed. The Matrox Utils application can also be used to reboot Monarch HDX devices present on the network.









Matrox Monarch HD

---

Professional video streaming and recording appliance

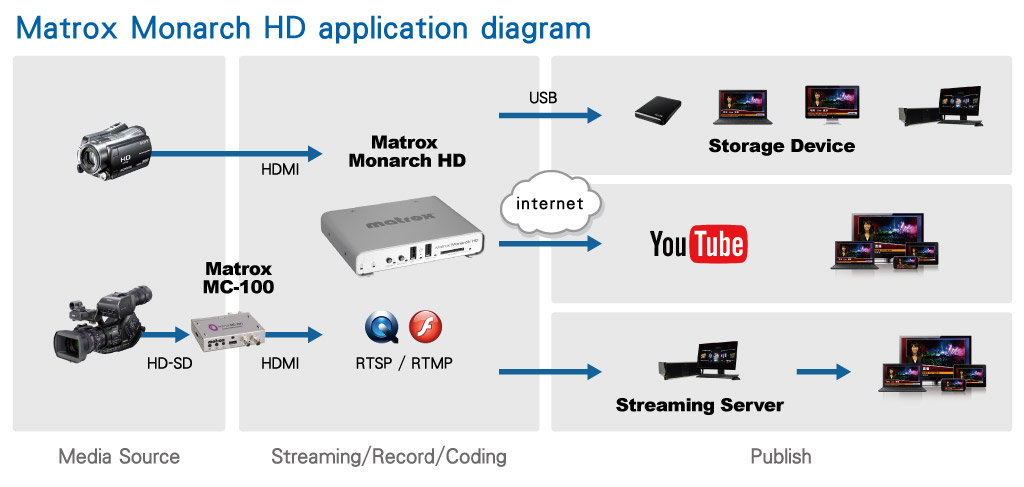

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.

From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.











Record master quality video while streaming

If an event is worth streaming, it is worth recording at the highest possible quality. The better the recording quality, the more value it offers a post event produced asset. These assets can be made available to your audience as fast turnaround VOD files or as fully post produced highlight reels.



Matrox Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other. A typical setting will let a user record a master quality file at 25 Mbps while simultaneously streaming at a bitrate of 5 Mbps. As a dedicated streaming or recording appliance, Matrox Monarch HD can stream at bitrates up to 20 Mbps or record at bitrates as high as 30 Mpbs.



Matrox Monarch HD injects the highest quality video into every bit regardless of input source or target bitrate. Combining the power of the built-in H.264 encoder with Matrox’s high quality deinterlacing and scaling engines guarantees stunning results.











Ready to edit and upload with MP4 and MOV

Matrox Monarch HD gives the option of recording high quality H.264 video as MP4 or MOV files. These formats offer maximum versatility for use in any application. Upload a file to your own web server or to a Content Delivery Network (CDN) like YouTube. Alternatively, you can directly import the file into most creation tools without the need for file transcoding.







Robust and Practical Design

Powerful and robust, Matrox Monarch HD offers simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design. Matrox Monarch HD's HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal received from a camera, a switcher, a signal convertor, or a computer. All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8" stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.











Easily reach your audience

Whether you’re providing live content to Flash or Wowza servers, or to any of the popular CDNs, Matrox Monarch HD’s flexible streaming internet protocols’ support is up to task. Its useful encoding presets let you select the most appropriate resolution based on the available bandwidth. The target encoding streaming parameters only need to be entered once and saved as a unique profile. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to reenter data.















Record to anything

Matrox Monarch HD lets you select from a variety of recording media types. Use a USB key or drive when portability isimportant. A SD card might be your best option when a more secure and compact solution is required. Alternately, a systemdrive on a computer found on the network may prove extremely useful if multiple individuals need to access the footage.



Regardless of where you store the footage, the record controls can be executed without affecting the streaming operations. High quality files are available anytime during the streaming session for creating complementary video assets.







Remote Command and Control

A simple web page is all that is needed to harness the power of Matrox Monarch HD. You can control and configure the appliance using any device on your network that supports a standard web browsing application.

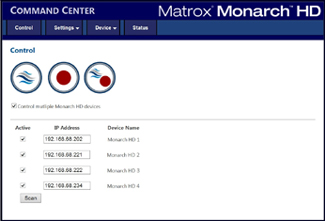

A single Matrox Monarch HD device can act as a master to multiple slave devices. From a single web page, you can simultaneously start the recording and/or streaming of up to four Matrox Monarch HD devices.











Stream and record SDI signals

A/V professionals and broadcast engineers often work with SDI signals from devices like switchers, routers and cameras that do not have HDMI outputs. Matrox Monarch HD can stream and record these signals using Matrox MC-100, a dual SDI to HDMI convertor. This convertor accepts any HD-SDI or 3G-SDI sources and converts it to an HDMI signal that may be used as a source for the Monarch HD if it is of a supported resolution.





















Matrox Monarch HD Awards



StreamingMedia.com Honors the Best of NAB 2013
	Editors and writers at StreamingMedia.com selected Matrox Monarch HD as one of the five new products they found most impressive, and that promised to do the most to push the online video industry forward in the year ahead.
Digital Video Magazine Announces 2013 NAB Best of Show Black Diamond Award Winners
	Matrox Monarch HD was honored with at DV Black Diamond Award which recognizes outstanding achievement in the advancement of video technology.  A select panel of engineers, editors, and production and post professionals joined the magazine staff to judge the awards.
TV Technology's STAR Awards Recognize "Best of NAB 2013"
	A STAR Award was presented to Matrox for the new Monarch HD live video streaming and recording appliance. Now celebrating its 13th anniversary, the STAR Awards are designed to celebrate and showcase the preeminent technological innovations available to the media industry. A judging panel of broadcast industry experts reviewed a variety of products and services, examined the technical applications and their overall contribution to the industry.
BCPVA Video Innovation Award
	Matrox Monarch HD garnered at 2013 VIA award. The British Columbia Professional Videographers Association (BCPVA) is Canada's oldest and largest professional video production association. Each year, delegates scour NAB for innovative content creation and shooting technologies and chose those products deemed most helpful to videographers looking to advance their businesses.
